Tyre Steel Bundles Recycling Line
The pyrolysis steel wire crushing and washing line is an integrated production line for “crushing-separation-purification” of waste steel wire (such as pyrolysis tire steel wire, pyrolysis plastic-metal composite steel wire, etc.) produced after pyrolysis process treatment.
Its core function is to remove the pyrolysis residues such as carbon black, resin, oil, dust, etc.attached to the surface of the steel wire through physical crushing and dust removal processes, and process the steel wire into pure metal raw materials that meet the recycling standards.
Application
We can offer size reduction for the following materials:
Tyre Steel Bundles.
Tyre Rings.
Steel Wire.
End product: Clean steel wire: purity up to 99%, smooth surface, can be directly used as high-quality steel making raw material, with large market demand and high value
Flow Chart

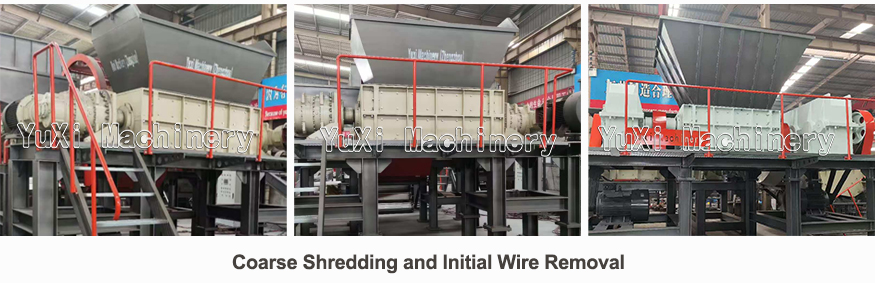

Step 1: Coarse Shredding and Initial Wire Removal
Waste tires or cables are fed via a conveyor belt into a heavy-duty, dual-shaft shearing shredder, where they are shredded and sheared into 50-80mm chunks, achieving the initial separation of the rubber/plastic from the steel wire skeleton.

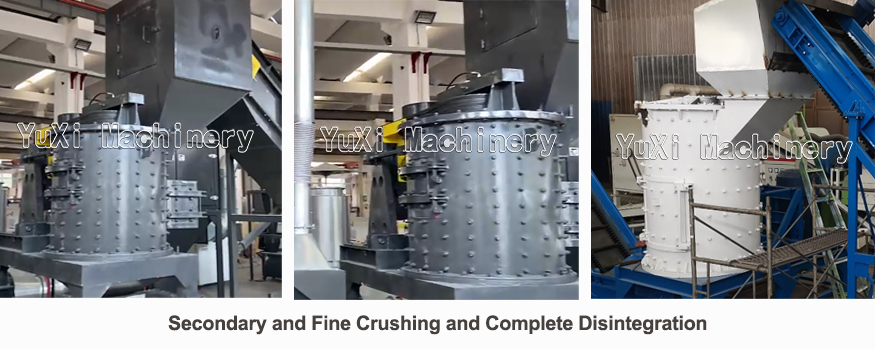

Step 2: Secondary and Fine Crushing and Complete Disintegration
After coarse crushing, the material enters a high-speed rotary pulverizer. The intense impact and friction of the hammers further pulverize the remaining rubber and fiber into fine particles, completely “releasing” the steel wire.

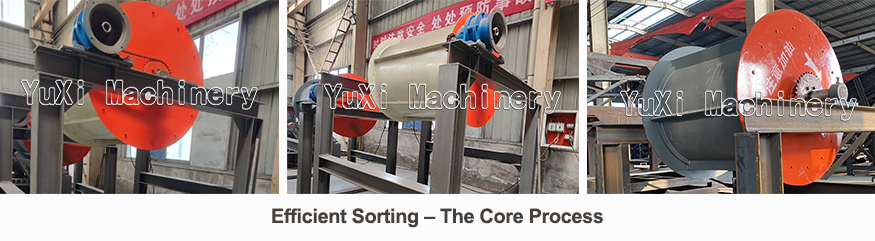

Step 3: Efficient Sorting – The Core Process
Magnetic Separation: Utilizing the ferromagnetic properties of steel wire, a strong magnetic drum/magnetic separator automatically separates the pure steel wire, achieving the initial, efficient separation of metals and non-metals.
Features
1.High-Purity Separation: Utilizing multi-stage crushing, precision sorting, and deep cleaning technologies, the extracted steel wire achieves purity exceeding 99% and a metal recovery rate exceeding 98%. This product can directly enter the high-end metallurgical market, doubling its value.
2.Fully Automated Intelligent Control: The entire line utilizes a PLC central control system, enabling one-button start and stop, and real-time monitoring, significantly reducing labor costs and operational errors, ensuring continuous, stable, and efficient production.
3.Powerful Power and Durable Design: Core equipment such as the crusher, pulverizer, and separator utilizes special alloy cutters and wear-resistant materials, offering powerful power, high throughput, and a long service life to withstand diverse and complex operating conditions.
